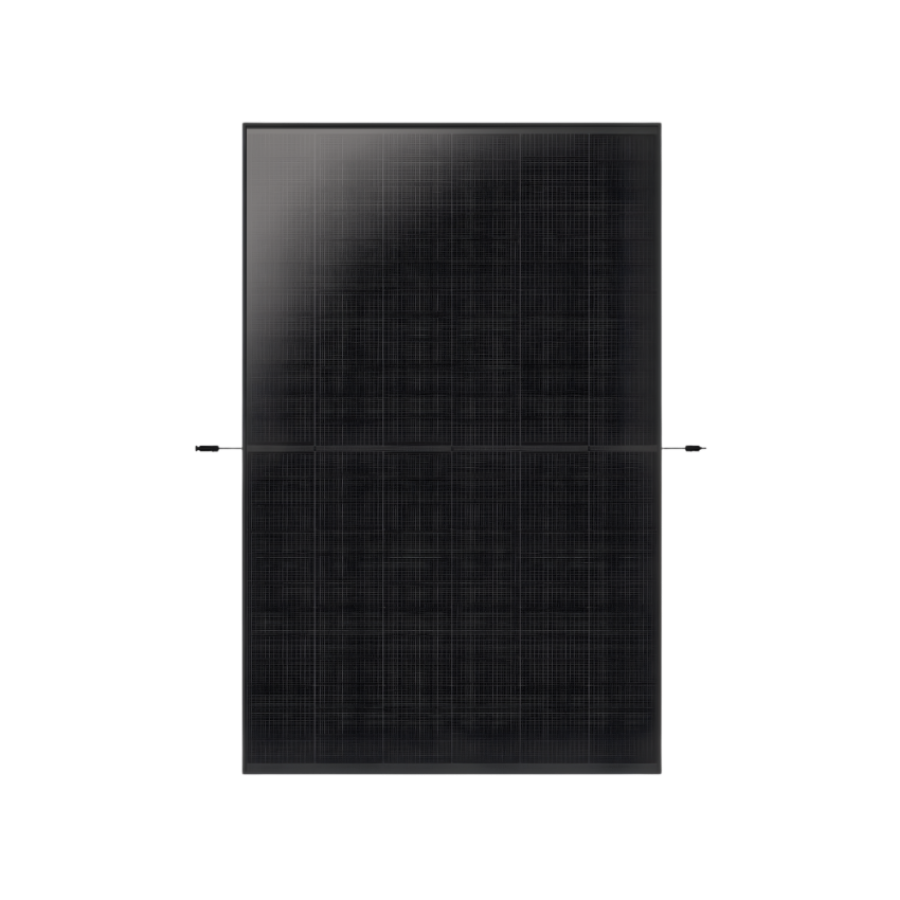

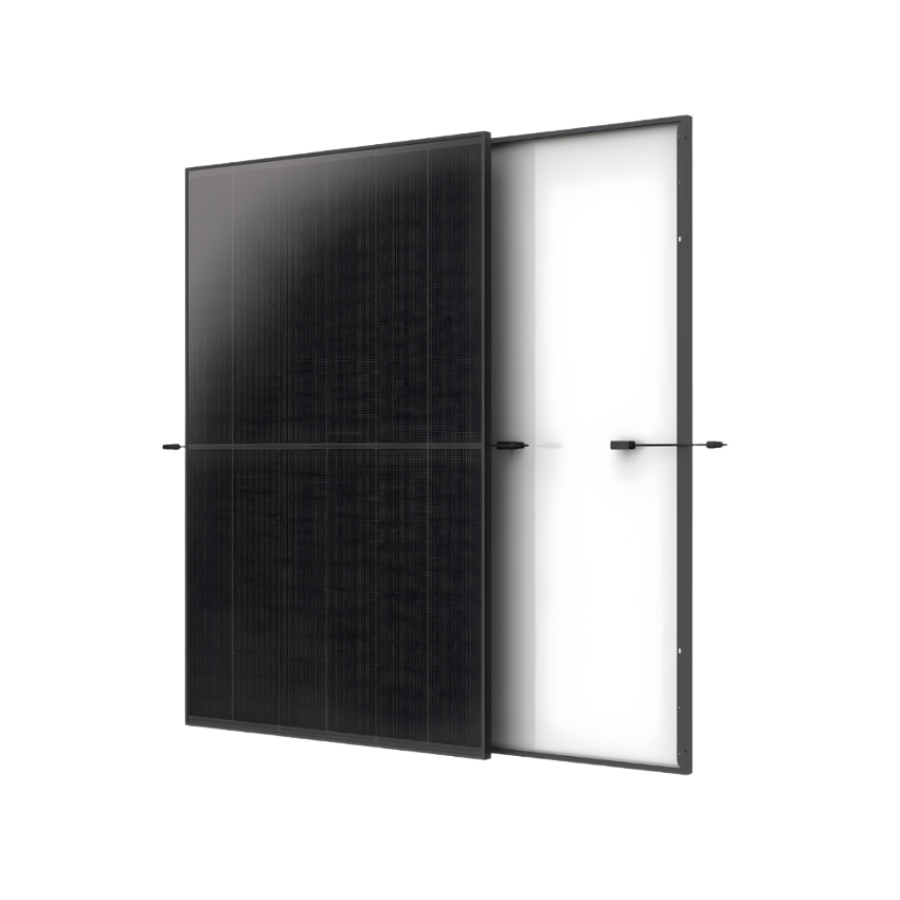

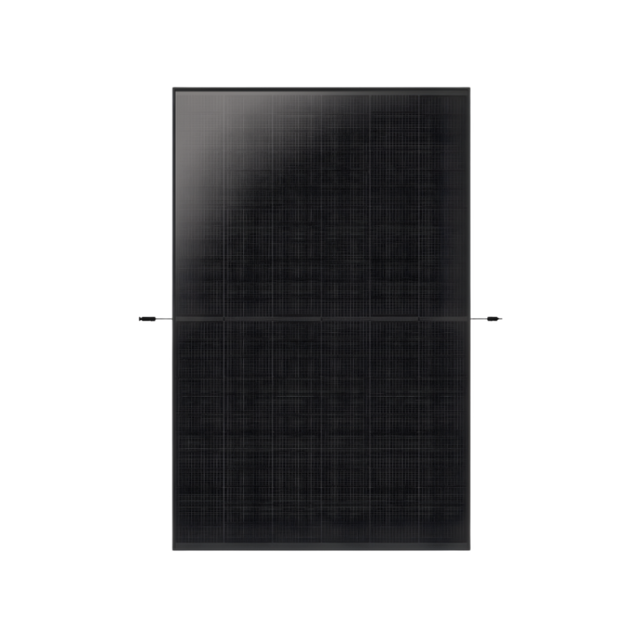

Trina Solar Vertex S+ 445W Solar Module TSM-NEG9RC.25 monocrystalline bifacial

Trina Solar Vertex S+ 445W: The next generation of uncompromising solar performance

Maximize your energy independence with the technological leader among solar modules. The Trina Solar Vertex S+ 445W is aimed at discerning homeowners and commercial users who want to achieve maximum yields in limited space. Through the innovative combination of high-efficiency monocrystalline n-type cells and an extremely durable glass-glass construction, this module sets new standards in reliability. Rely on maximum power density in any weather condition – protected by decades of premium warranties.

Highlights of the Trina Solar Vertex S+ module

• Future-proof cell technology: The arrangement of 144 monocrystalline cells ensures excellent performance and effectively minimizes losses during partial shading.
• Outstanding module efficiency: With an impressive efficiency of 22.3%, the module makes optimal use of incident solar radiation and delivers peak yields.
• Optimized temperature behavior: Thanks to a low temperature coefficient of -0.29%/°C, the panel operates highly efficiently and stably even on hot summer days.
• Positive power tolerance: With a guaranteed tolerance of 0 to +5 W, you receive the full power in any case and often even more than specified.
• Smart n-type degradation control: Extremely resistant to power loss, with only a maximum of 1% degradation in the first year and merely 0.4% in subsequent years.

Highlights of the mechanical design

• Dual-glass premium protection: 1.6 mm thick heat-strengthened glass on both the front and back optimally protects the cells from environmental influences and mechanical stress.
• Resilient frame: The 30 mm thick, black anodized aluminum frame combines modern, elegant aesthetics with uncompromising torsional rigidity.
• Maximum weather resistance: An IP68-certified junction box and highly developed POE/EVA encapsulation material guarantee absolute water tightness and longevity.

Technical specifications

Advantage for professionals: The Trina Solar Vertex S+ 445W combines state-of-the-art n-type bifacial cell architecture with the ultimate resilience of a dual-glass module. PV installers and end customers alike benefit from extreme mechanical load-bearing capacity, simplified system design through optimized current values, and the investment security of a 30-year performance warranty.
