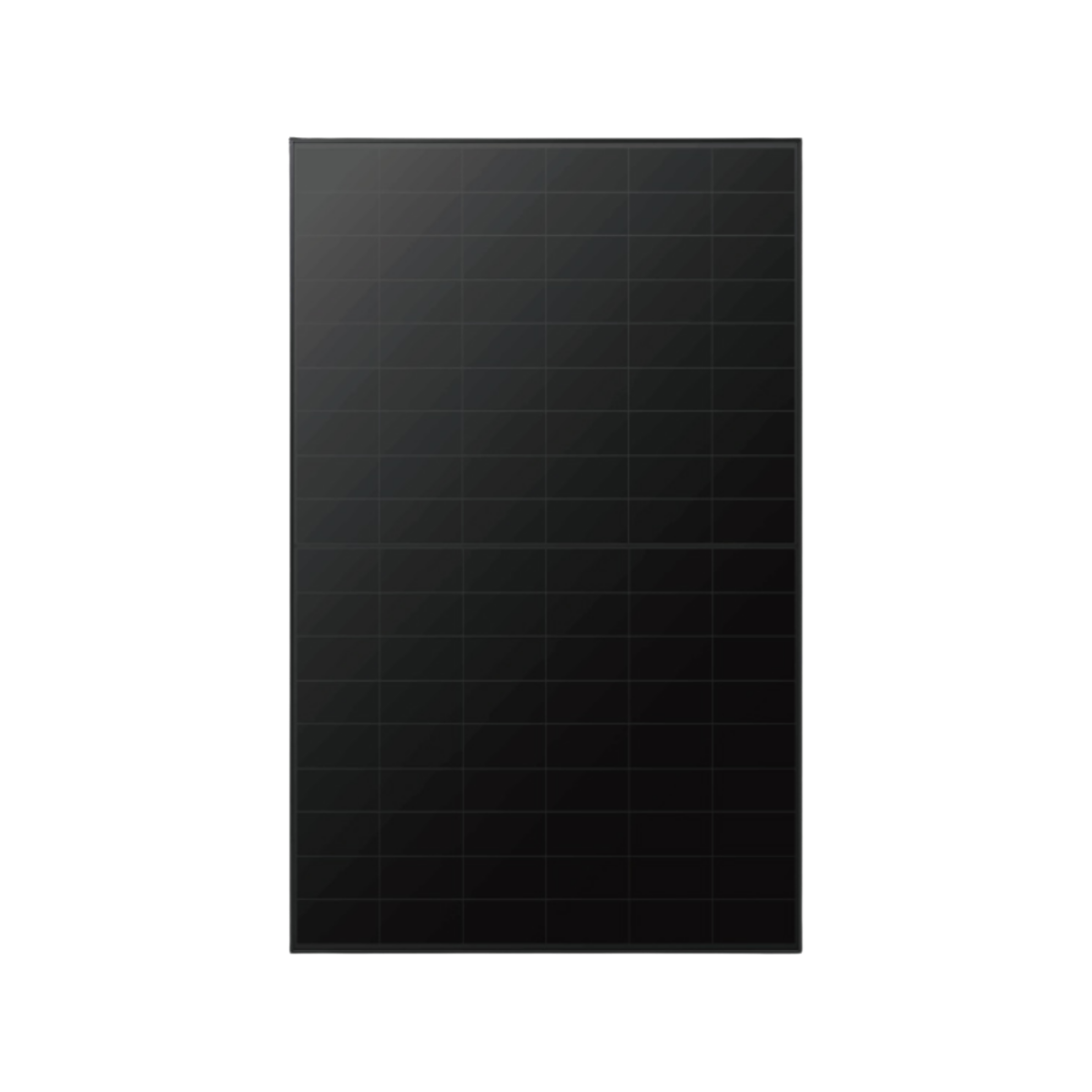

LONGi Solar Technology Solar Module LR7-54HVBB-475M

LONGi Solar LR7-54HVBB-475M: Maximum performance and aesthetic perfection through double-glass technology

Set new standards for your PV system with the forward-looking LONGi Solar LR7-54HVBB-475M solar module. This high-end double-glass module has been specially developed for discerning homeowners, commercial PV projects, and installation professionals who want to combine maximum yields with maximum durability. With an impressive peak output of 475 W under STC and an excellent module efficiency of 23.3%, this module guarantees superior energy yields even on limited roof areas. Thanks to its robust double-glass construction and bifacial power gains, it is the perfect investment in a lastingly profitable and fail-safe energy future.

Highlights of the LONGi LR7-54HVBB-475M energy efficiency

• Outstanding 475 W nominal power: Delivers a reliable peak output of 475 W under standard test conditions (STC) for maximum electricity yields.
• Highly efficient 23.3% module efficiency: Achieves excellent area efficiency through state-of-the-art cell technology, generating significantly more solar power per square meter.
• Optimized low-light behavior: Generates a strong output of 361 W even under real-world weather conditions (NOCT) for consistently high everyday performance.
• Bifacial additional yields: Enables significant additional power gains via the active rear side of the module, depending on the substrate and reflection.
• Positive power tolerance: Offers the security, with a guaranteed output tolerance of 0 to +3%, that the nominal power will always be reached or exceeded during operation.

Highlights of mechanical stability & longevity

• Secure double-glass design: The combination of 2.0 mm semi-tempered front glass and 1.6 mm semi-tempered back glass optimally protects the solar cells from environmental influences and mechanical stress.
• Elegant black aluminum frame: The black anodized aluminum alloy frame ensures not only maximum torsional rigidity but also a timelessly elegant and homogeneous roof appearance.
• Extreme mechanical resilience: Certified for maximum static front loads of up to 5400 Pa and rear loads of up to 2400 Pa to effortlessly withstand extreme snow and wind loads.
• Highest weather protection: The IP68-certified junction box guarantees absolute dust and water tightness as well as long-lasting cable connections.
• Outstanding hail resistance: Successfully tested with 25 mm hail stones at an impact velocity of 23 m/s for uncompromising protection during storms.

Technical specifications

Advantage for professionals: The LONGi Solar LR7-54HVBB-475M is the ideal module for future-proof and highly profitable photovoltaic projects. Thanks to the extremely low Pmax temperature coefficient (-0.260%/°C), the module delivers maximum yields even on hot summer days, while the advanced double-glass architecture minimizes degradation effects in the long term. With an enormous static front load capacity of 5400 Pa and flexible bifacial technology, it offers project developers and installers maximum planning security, shorter amortization periods, and uncompromising aesthetics on any type of system.
