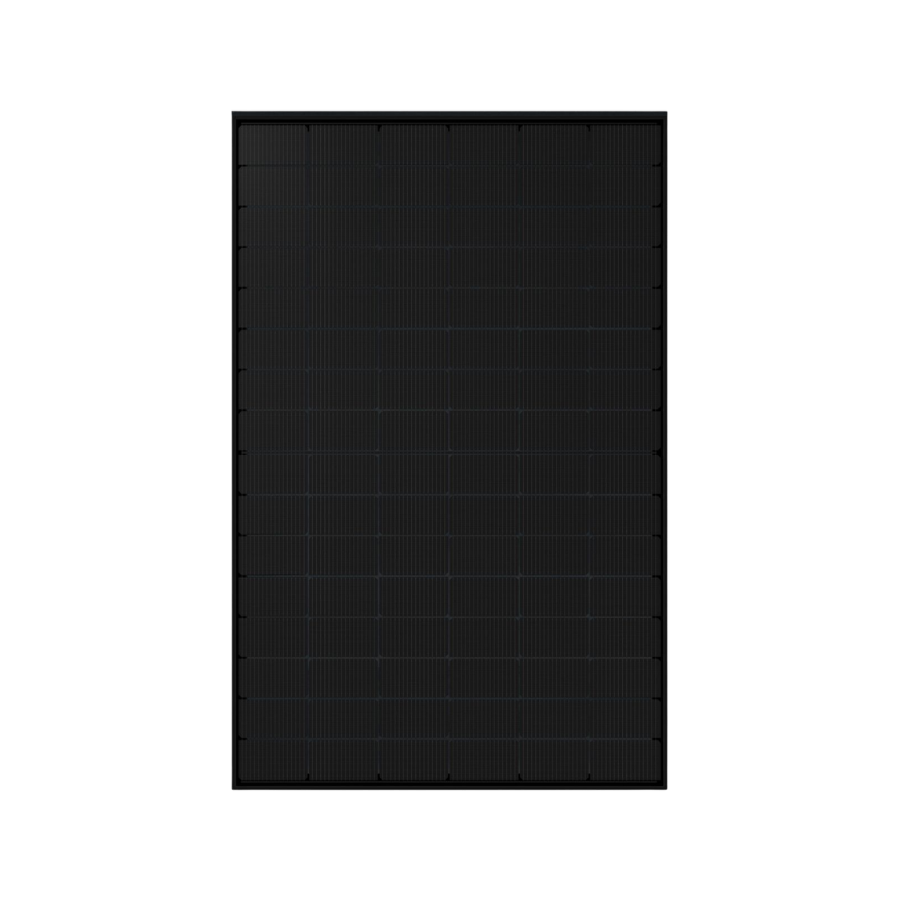

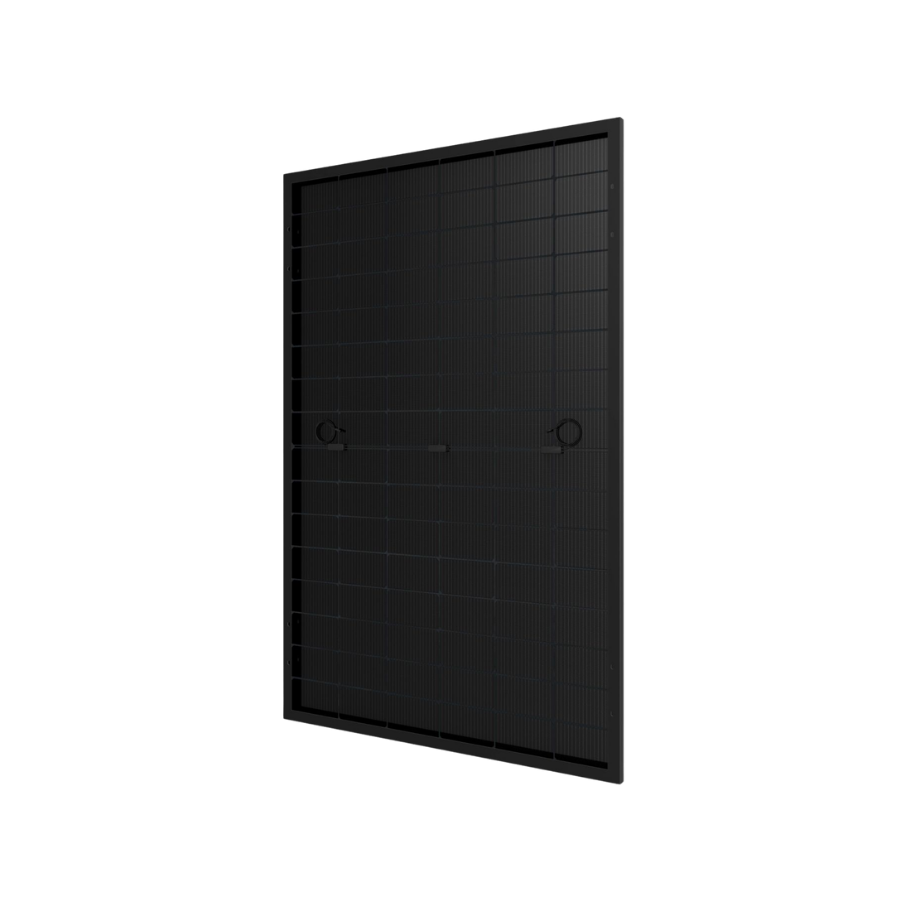

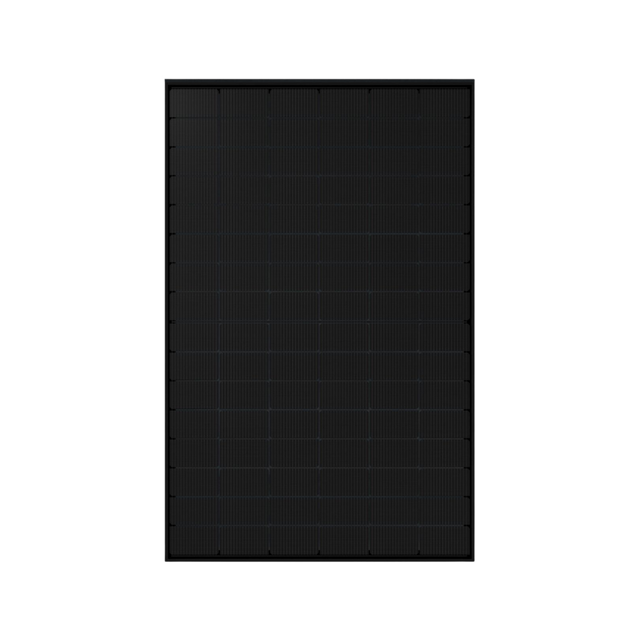

Jolywood 500W HD108N-R2 Transparent Black Solar Module: Maximum Performance in an Elegant Design
Embrace the future of energy generation with the Jolywood 500W HD108N-R2 Transparent Black solar module. Specially developed for discerning homeowners and commercial installations, this premium module combines state-of-the-art N-type TOPCon cell technology with a groundbreaking glass-glass construction. Thanks to its transparent-black aesthetic, it blends elegantly into any modern architecture, while its bifacial property efficiently converts unused light potential from the rear side into pure energy. Experience uncompromising longevity and maximum yields even in diffuse light or extreme temperatures.
Highlights of the Jolywood 500W HD108N-R2
- N-type TOPCon Technology: Offers first-class power efficiency, minimizes degradation over decades, and ensures consistently stable yields.

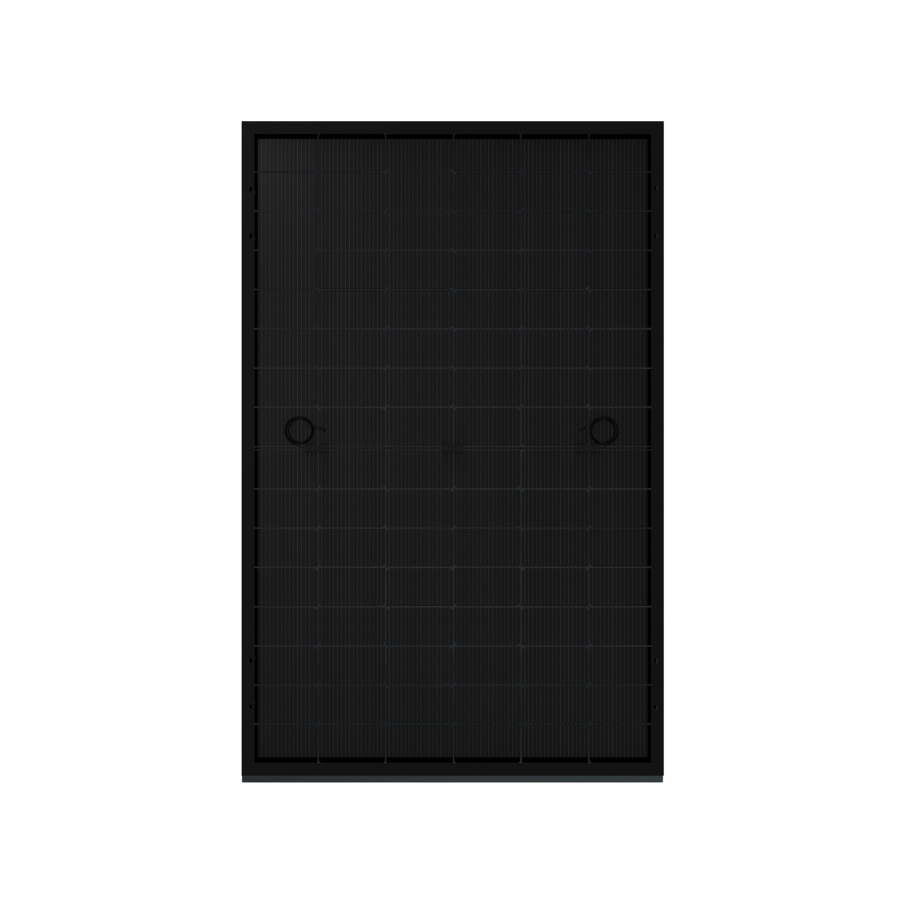

- Bifacial Energy Generation: The transparent backside efficiently utilizes reflected light, which can lead to a significant power gain of up to 30% depending on the surface.
- Robust Glass-Glass Construction: The dual-glass design on both sides reliably protects the module from environmental influences such as micro-cracks, moisture, and mechanical stress, drastically increasing its service life.
- Excellent Efficiency: With a module efficiency of 22.5% under standard test conditions, available roof space is utilized optimally.
- Optimized Temperature Behavior: Thanks to the low temperature coefficient of -0.280%/°C, the module delivers a consistently high output even on hot summer days.
Technical Specifications
| Property | Details |
|---|---|
| Nominal Power (Pmax) at STC | 500 W |
| Optimum Operating Voltage (Vmp) | 33.50 V |
| Optimum Operating Current (Imp) | 14.92 A |
| Open-Circuit Voltage (Voc) | 39.03 V |
| Short-Circuit Current (Isc) | 15.78 A |
| Module Efficiency | 22.5% |
| Nominal Power (Pmax) at NMOT | 375 W |
| Operating Voltage (Vmp) at NMOT | 31.91 V |
| Operating Current (Imp) at NMOT | 11.73 A |
| Open-Circuit Voltage (Voc) at NMOT | 37.37 V |
| Short-Circuit Current (Isc) at NMOT | 12.75 A |
| Bifaciality Factor | 80% ± 5% |
| Number of Cells | 108 units |
| Dimensions | 1960 mm × 1134 mm × 30 mm |
| Weight | 27.3 kg |
| Glass (Front/Rear) | 2.0 mm / 2.0 mm semi-tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68 (3 diodes) |
| Cable Cross-Section & Length | 4.0 mm², +1300 mm / -1300 mm (customizable) |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500 V DC (IEC) |
| Maximum Reverse Current (Fuse) | 35 A |
| Static Load (Front/Rear) | 5400 Pa / 2400 Pa |
| Temperature Coefficient (Pmax) | -0.280% / °C |
| Temperature Coefficient (Voc) | -0.250% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Nominal Operating Cell Temperature (NMOT) | 45 ± 2°C |
Potential Additional Yield Through Rear Gain
| Power Gain | Max. Power (Pmax) | Open-Circuit Voltage (Voc) | Short-Circuit Current (Isc) |
|---|---|---|---|
| 10% Gain | 550 W | 39.03 V | 17.36 A |
| 15% Gain | 575 W | 39.03 V | 18.15 A |
| 20% Gain | 600 W | 39.13 V | 18.89 A |
| 25% Gain | 625 W | 39.13 V | 19.68 A |
| 30% Gain | 650 W | 39.13 V | 20.47 A |
Advantage for Professionals: The Jolywood 500W Transparent Black solar module provides maximum energy yield in a minimal space thanks to futuristic bifacial N-type cells and the extremely resistant glass-glass construction. A future-proof investment that combines the highest aesthetic standards with uncompromising, decade-long reliability.
