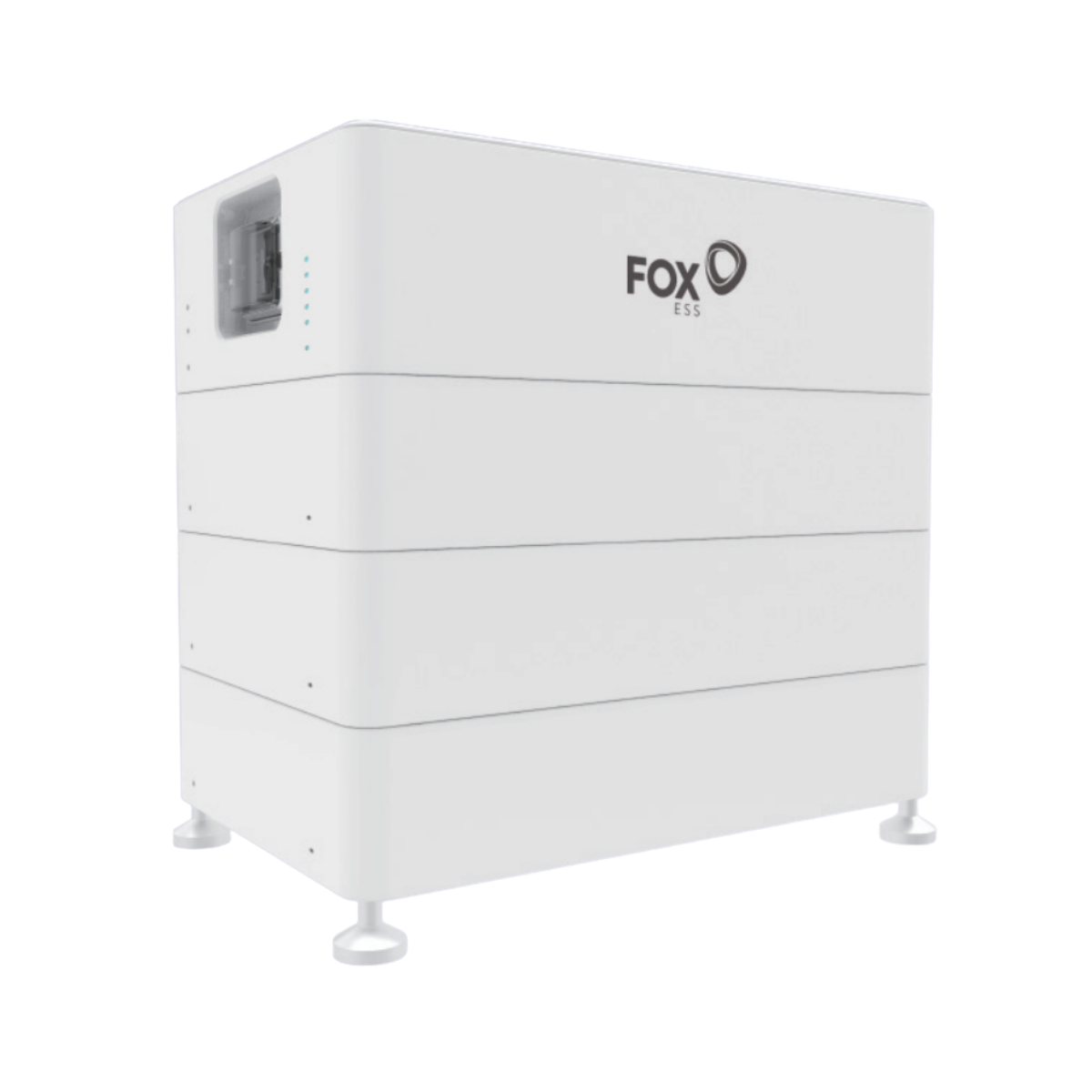

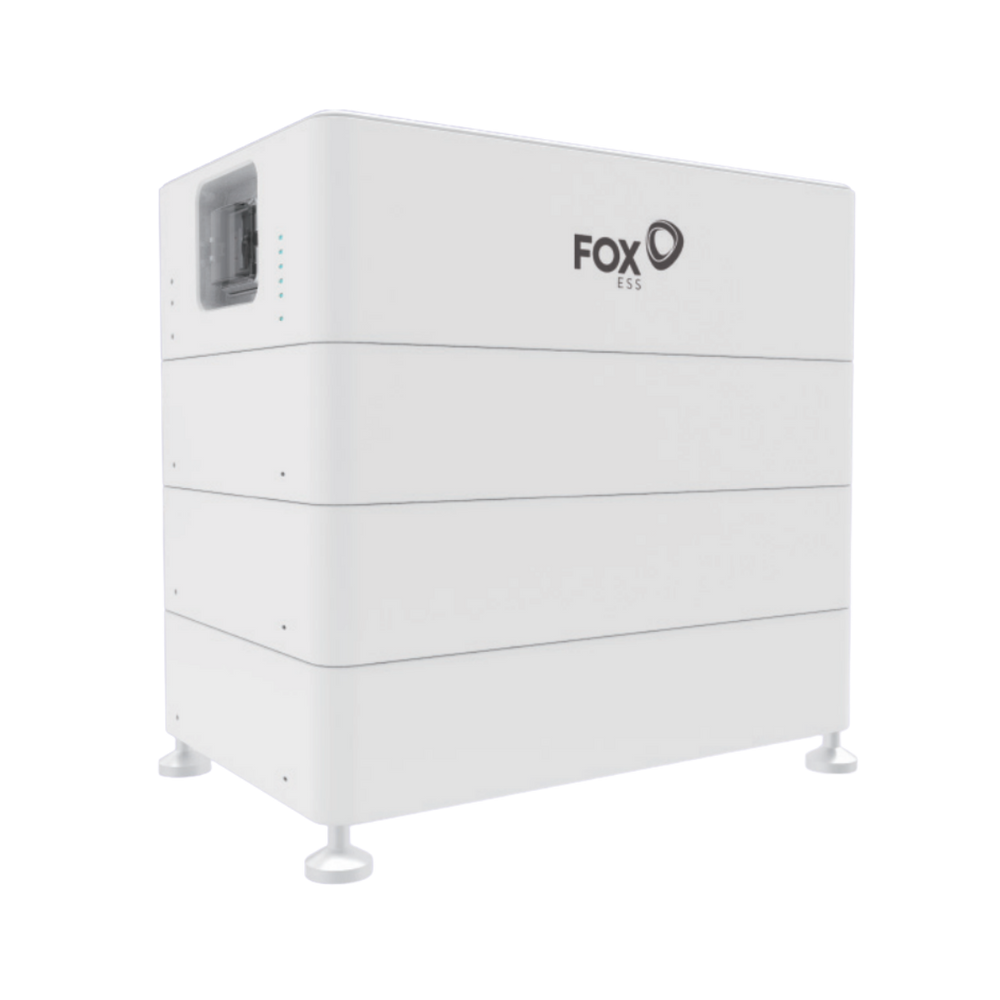

FOXESS DQ6.6 High-Voltage Battery: Highly efficient storage power and maximum scalability for professional energy projects
The FOXESS DQ6.6 high-voltage battery storage system sets new standards for demanding commercial and residential installations that prioritize reliable and yield-optimized energy independence. With an outstanding storage capacity of 6.62 kWh per module and a high depth of discharge of 95%, your solar power self-consumption is noticeably maximized. Thanks to the smart modular design featuring master (DQ6.6-M) and slave units (DQ6.6-S), the system can be seamlessly expanded from 19.86 kWh to a massive 92.68 kWh of storage capacity using simple plug-and-play installation.
Highlights of the DQ6.6-M (Master Module)
- Intelligent system control: As the central master unit, it handles the precise monitoring and control of up to 14 series-connected battery modules.
- Reliable CAN communication: Ensures uninterrupted and fast data exchange with the inverter and all connected units.
- Detailed LED display: Equipped with 6 status LEDs for quick and transparent visual diagnosis of the system and charge status.
- Integrated fire protection: Integrated safety and fire protection functions ensure the highest level of system safety.
Highlights of the DQ6.6-S (Slave Module)
- High-performance 6.62 kWh expansion: Allows flexible adjustment of storage capacity within the system from 19.86 kWh (3 modules) up to 92.68 kWh (14 modules).
- Secure LFP cell technology: High-quality lithium iron phosphate cells (LiFePO4) stand for excellent thermal stability, long service life, and efficiencies of over 95%.
- High current carrying capacity: Supports a peak discharge current of up to 110 A (for 60 seconds) as well as a maximum charge/discharge current of 80 A.
- Weatherproof IP65 housing: Robust floor-standing housing for flexible indoor and outdoor use in temperatures ranging from -10 °C to +55 °C (optionally down to -25 °C thanks to pre-heating).
Technical specifications of the DQ6.6-M master module
Technical specifications of the DQ6.6-S slave module
Advantage for professionals: The FOXESS DQ6.6 high-voltage system impresses with fast plug-and-play installation, outstanding efficiencies of over 95%, and exceptional power density. With its enormous scalability from 19.86 kWh up to 92.68 kWh, you offer your customers a future-proof, extremely robust storage solution for demanding commercial and large-scale projects.
