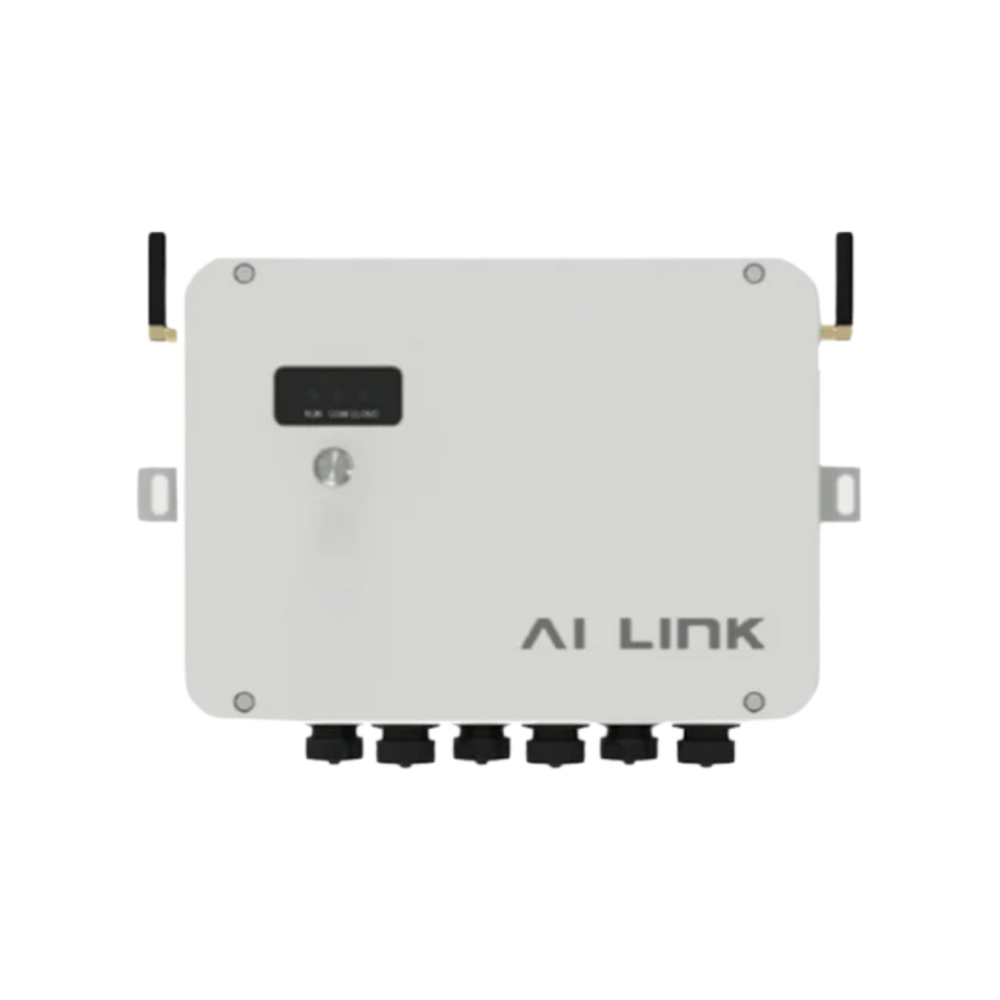

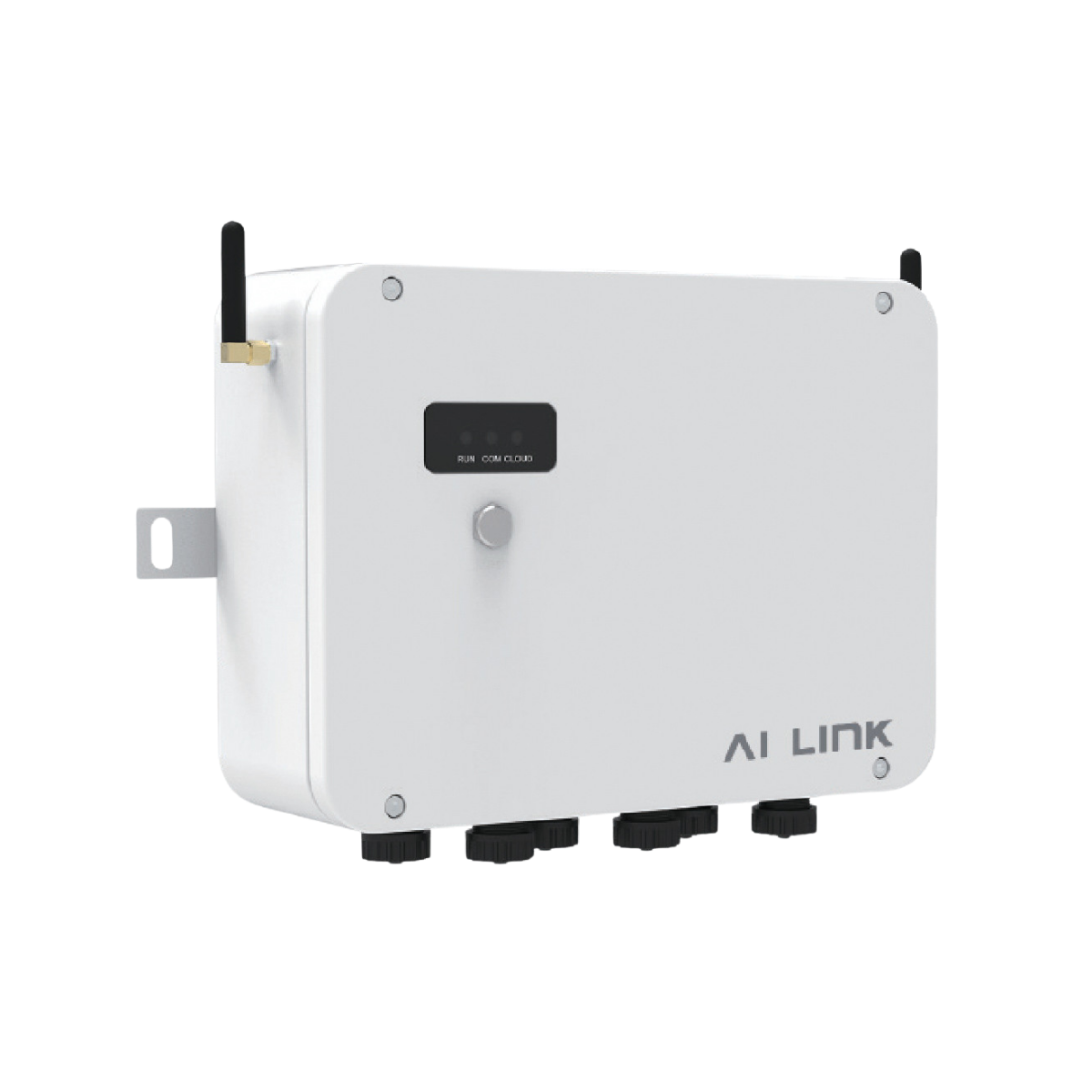

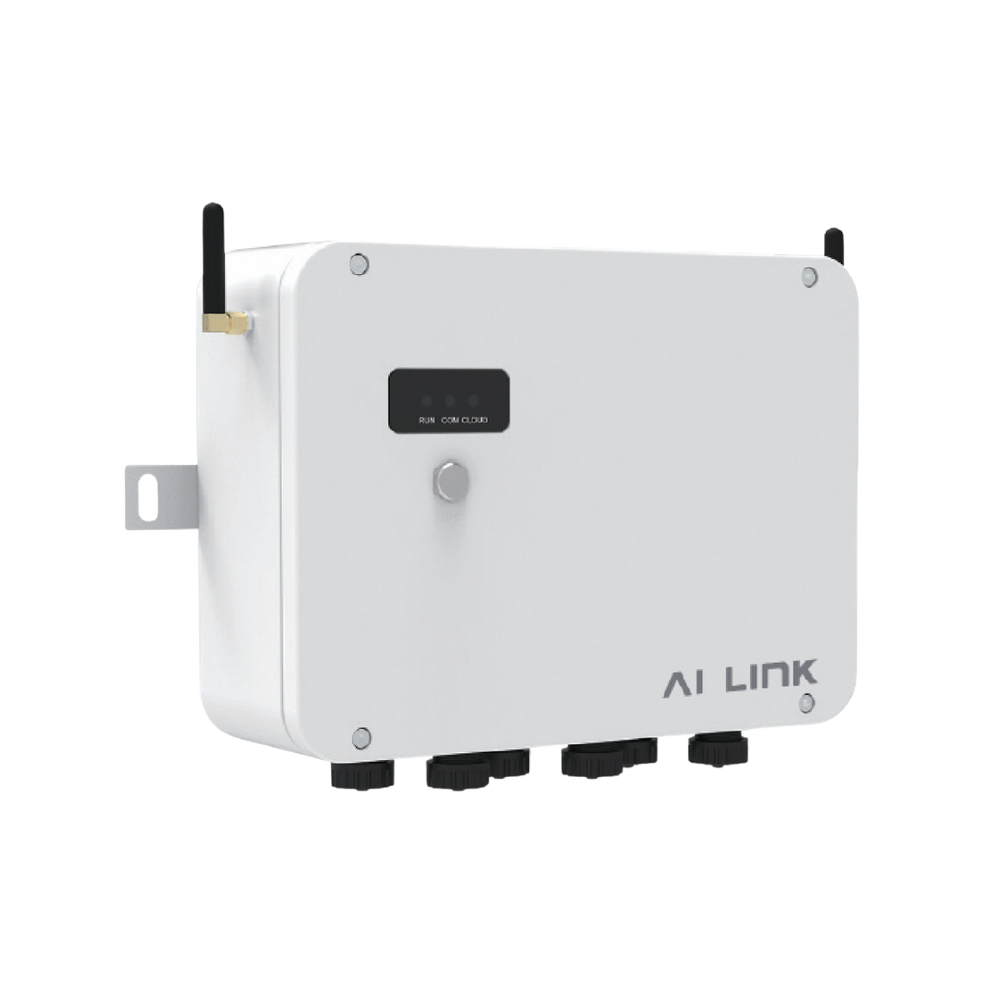

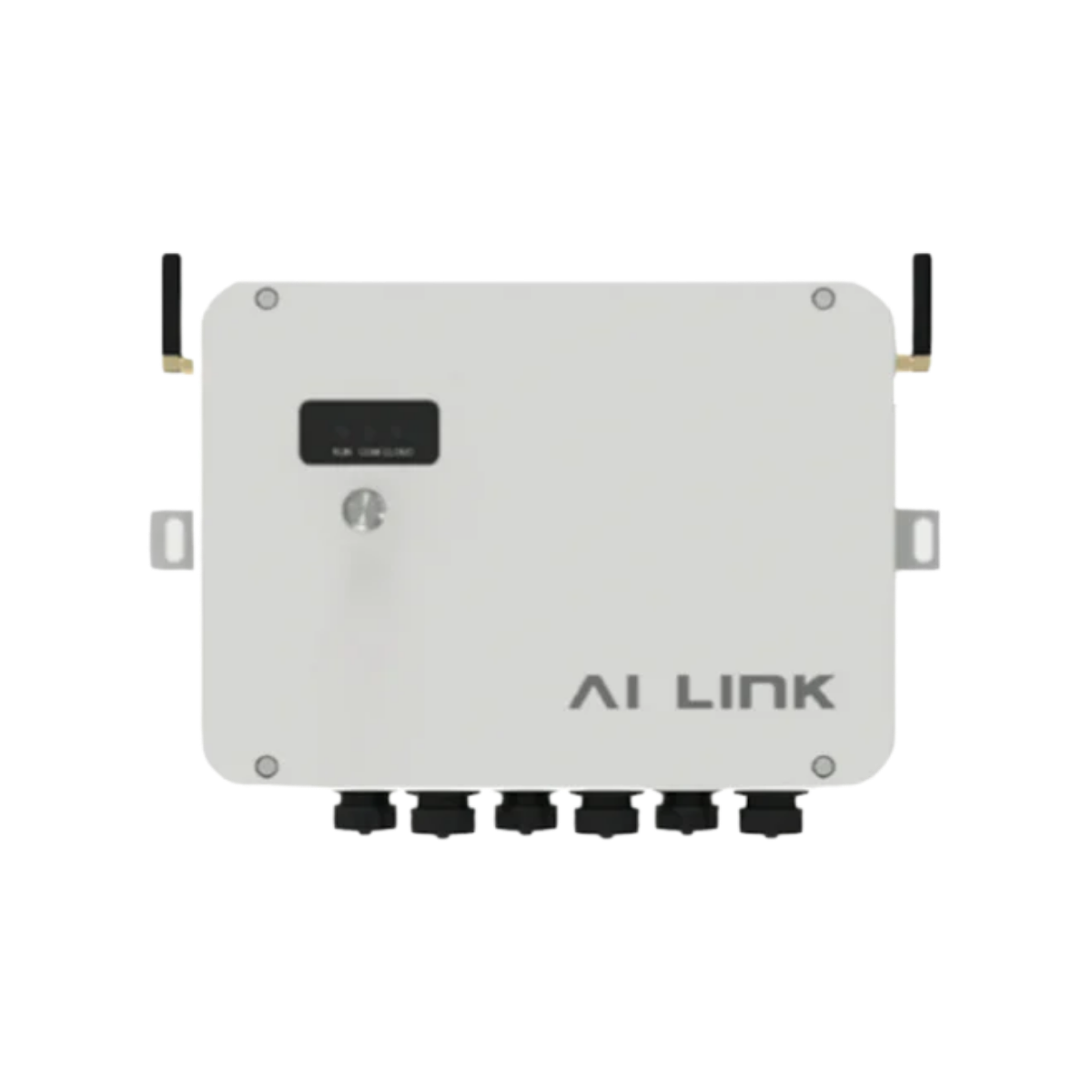

FOXESS AI Link A-1000: The intelligent data logger for multi-brand large-scale PV system control
The FOXESS AI Link A-1000 is the professional, AI-powered communication and control hub for demanding commercial and large-scale photovoltaic projects. As a highly advanced smart gateway, the system consolidates data streams from up to 30 inverters simultaneously, enabling seamless real-time monitoring and intelligent feed-in management. Thanks to its vast array of interfaces, including RS485, Ethernet, Wi-Fi, and optional 4G LTE, the AI Link guarantees fail-safe connectivity and maximum yields through smart optimization algorithms.
Highlights of the FOXESS AI Link A-1000 data logger
- Enormous scalability: Supports parallel management of up to 30 inverters for efficient monitoring of complex PV parks and commercial installations.
- Multi-interface connectivity: Equipped with 4 RS485 interfaces (Modbus RTU, Sunspec) and 2 RJ45 Ethernet ports (10/100M) for flexible, multi-brand system integration.
- Comprehensive I/O management: Features 6 digital inputs (0–24 V DC) and 3 digital relay outputs (normally open) for precise integration of external ripple control receivers or safety shutdowns.
- Dual wireless connectivity: Offers integrated Wi-Fi (802.11 b/g/n/ac) in the 2.4 GHz band as well as optional broadband 4G LTE (FDD & TDD) for reliable cloud connection at remote sites.
- Clear status monitoring: Three dedicated system LEDs and a physical start button allow for quick diagnostics and easy on-site commissioning.
Highlights regarding housing protection & environmental dynamics
- IP65 certification: The robust housing provides complete protection against dust ingress and water jets, allowing for absolutely safe deployment in harsh outdoor environments.
- Extreme temperature resistance: Operates flawlessly within a demanding thermal range from icy -30 °C to tropical +60 °C ambient temperature.
- High-altitude suitability: Designed for unrestricted, reliable operation in topographically challenging regions at altitudes of up to an impressive 4,000 meters.
- Flexible mounting concept: Supports both classic wall mounting and bracket mounting for ergonomic indoor and outdoor installation.
- Highly efficient power intake: The system operates with a flexible DC input voltage of 10 V to 27 V with a minimal typical power consumption of just 20 W.
Technical specifications: FOXESS AI Link A-1000
| Feature | Details |
|---|---|
| Model designation | AI Link A-1000 |
| Max. number of inverters | Up to 30 units (depending on the respective inverter model) |
| Wired interfaces | 4× RS485 (Modbus RTU, Sunspec) | 2× Ethernet (RJ45, 10 M/100 M) |
| Digital inputs & outputs | 6× Digital Input (0–24 V DC) | 3× Digital Output (Relay, normally open) |
| Wi-Fi specifications | 802.11 b/g/n/ac | HT20/40 MHz | 2.4 GHz |
| 4G mobile (optional) | LTE-FDD: B1, B3, B7, B8, B20, B28A | LTE-TDD: B38, B40, B41 | WCDMA: B1, B8 |
| Power supply & consumption | DC input: 10 V to 27 V | Power consumption: Typical 20 W / Max. 30 W |
| Operating & storage temperature | Operating: -30 °C to +60 °C | Storage: -40 °C to +70 °C |
| Humidity & operating altitude | ≤ 95 % relative humidity (non-condensing) | ≤ 4,000 m above sea level |
| Protection class & operation | IP65 (weatherproof) | 3× status LEDs, 1× start button |
| Dimensions (W × H × D) / weight | 260 mm × 192 mm × 88 mm / 2.5 kg |
| Mounting types | Wall mounting, bracket mounting (suitable for indoor and outdoor areas) |
Advantage for professionals: The FOXESS AI Link A-1000 offers EPC project planners, solar installers, and grid operators maximum planning reliability and flexibility when implementing grid connection and feed-in requirements (VDE-AR-N 4110 / 4120). With its 4 separate RS485 channels and standardized Modbus RTU and Sunspec protocols, complex address conflicts are eliminated when cascading up to 30 inverters. The 6 digital inputs allow for direct, reliable connection to the grid operator's ripple control receiver for rapid active power reduction. Thanks to the robust IP65 certification and suitability for altitudes up to 4,000 meters, you are installing an absolutely maintenance-free, outdoor-ready telecommunications terminal that significantly lowers the O&M (Operations & Maintenance) costs of your fleet during ongoing operation.
