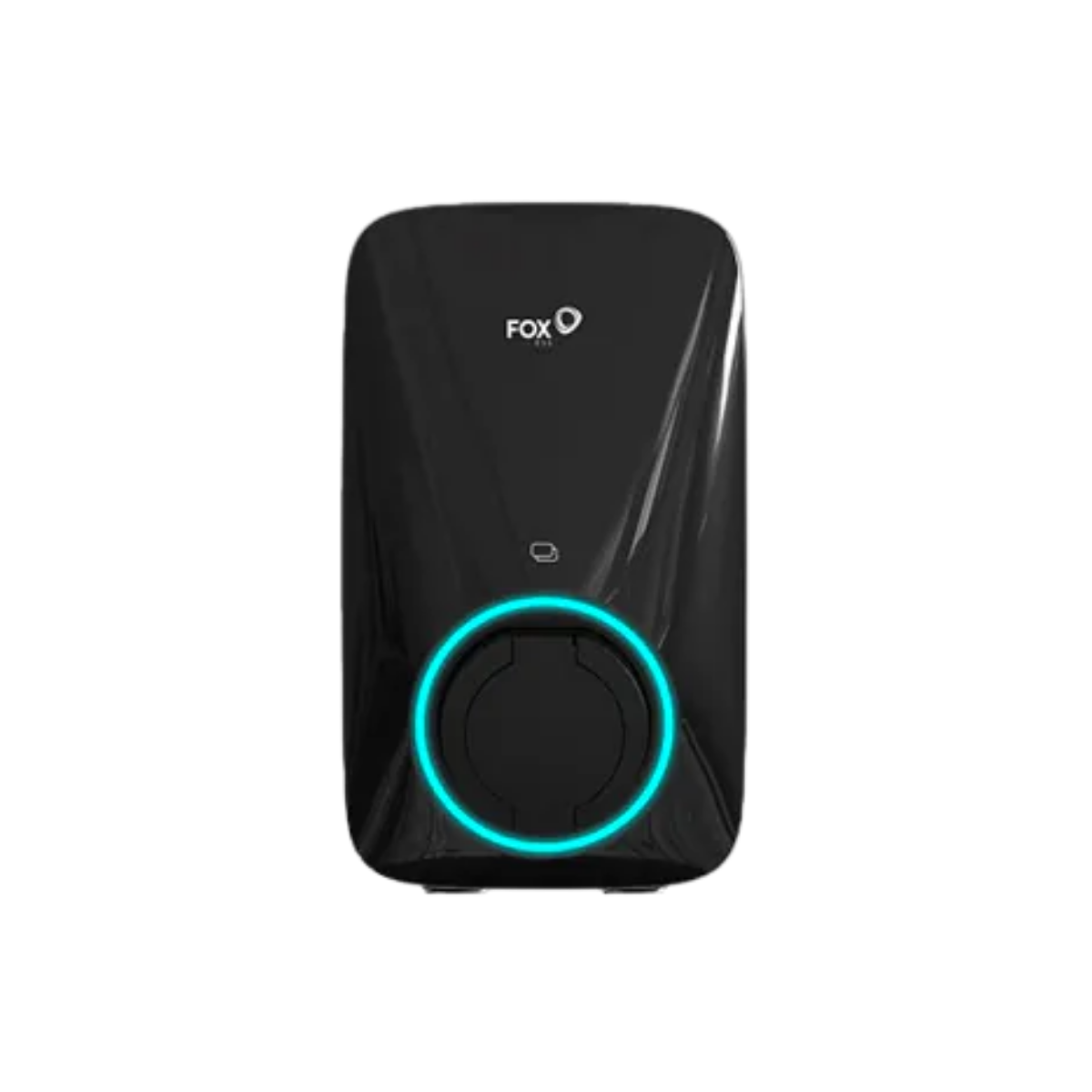

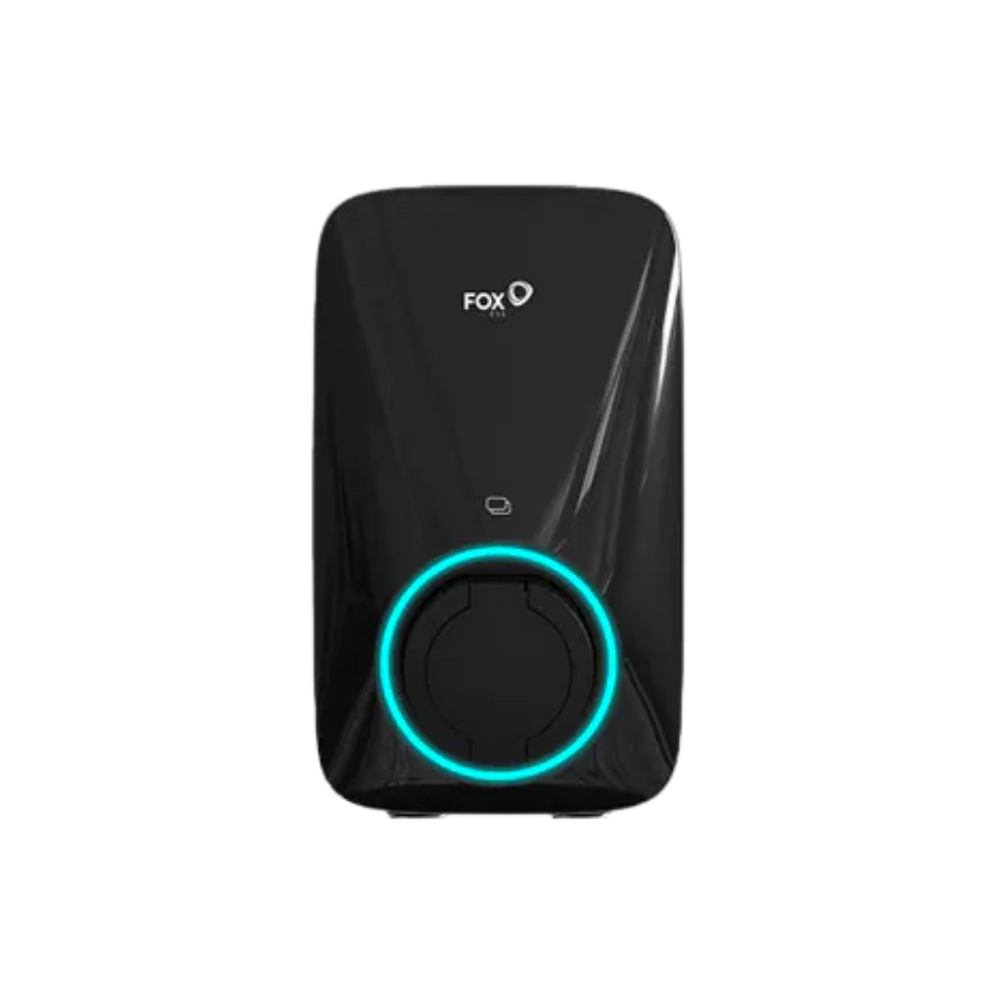

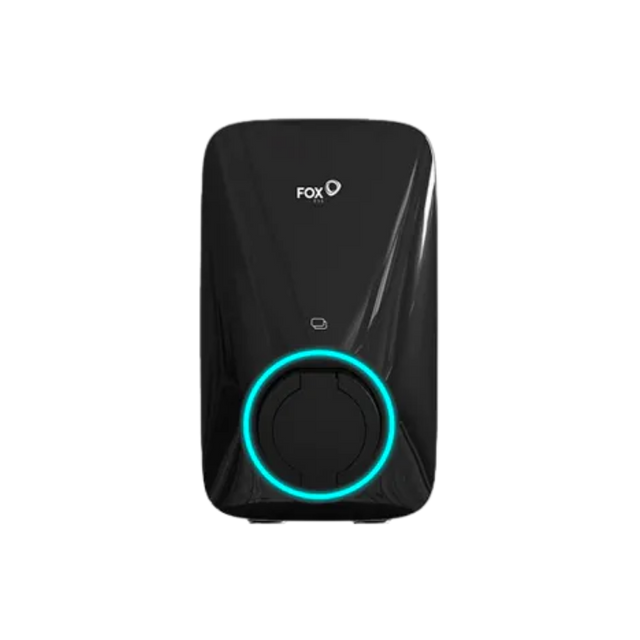

Fox ESS A Series EV Charger: The intelligent and future-proof charging station for modern electric vehicles

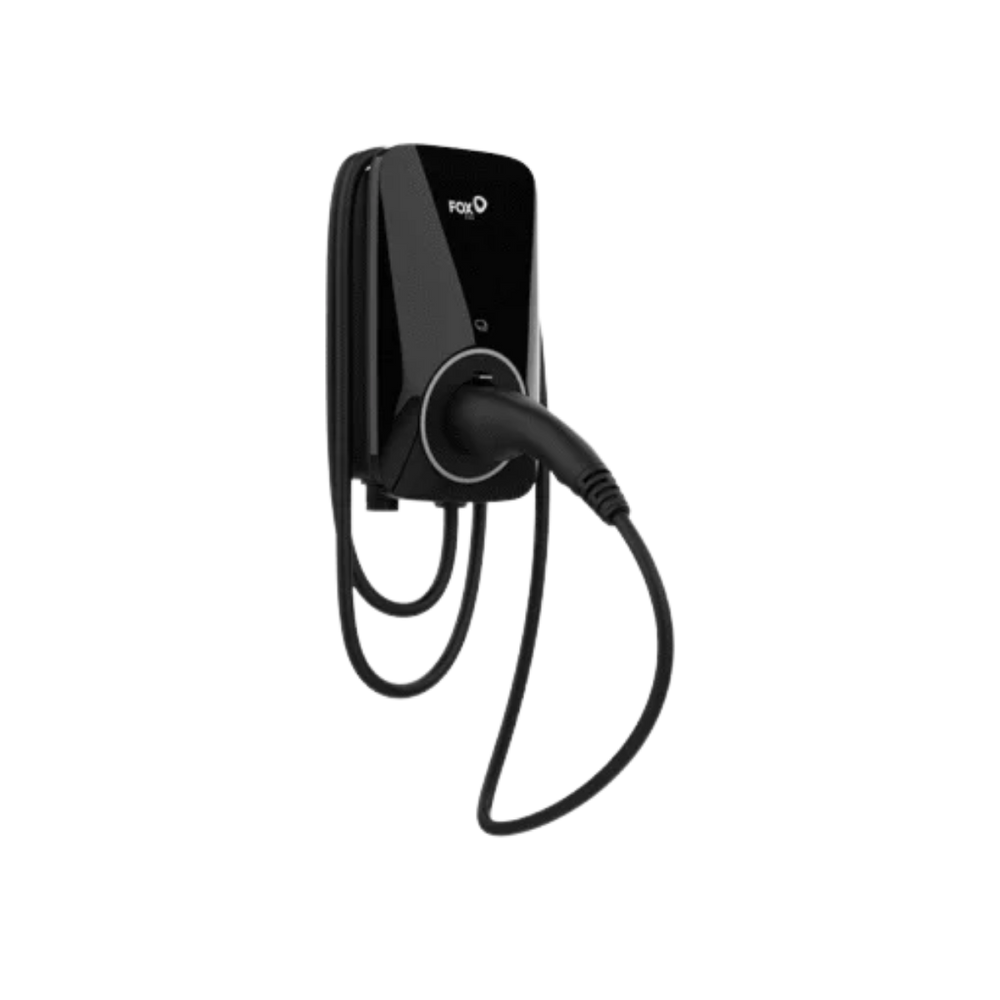

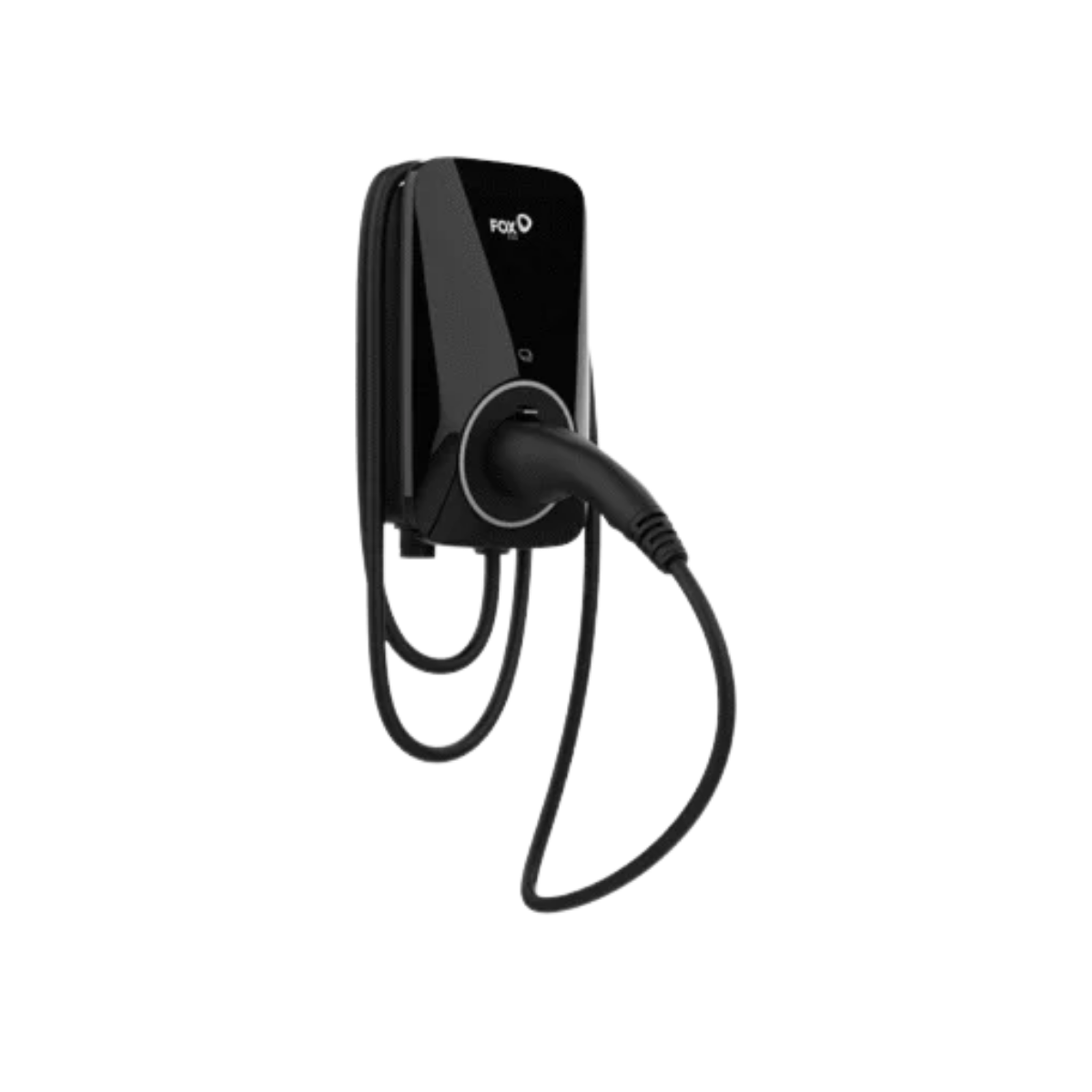

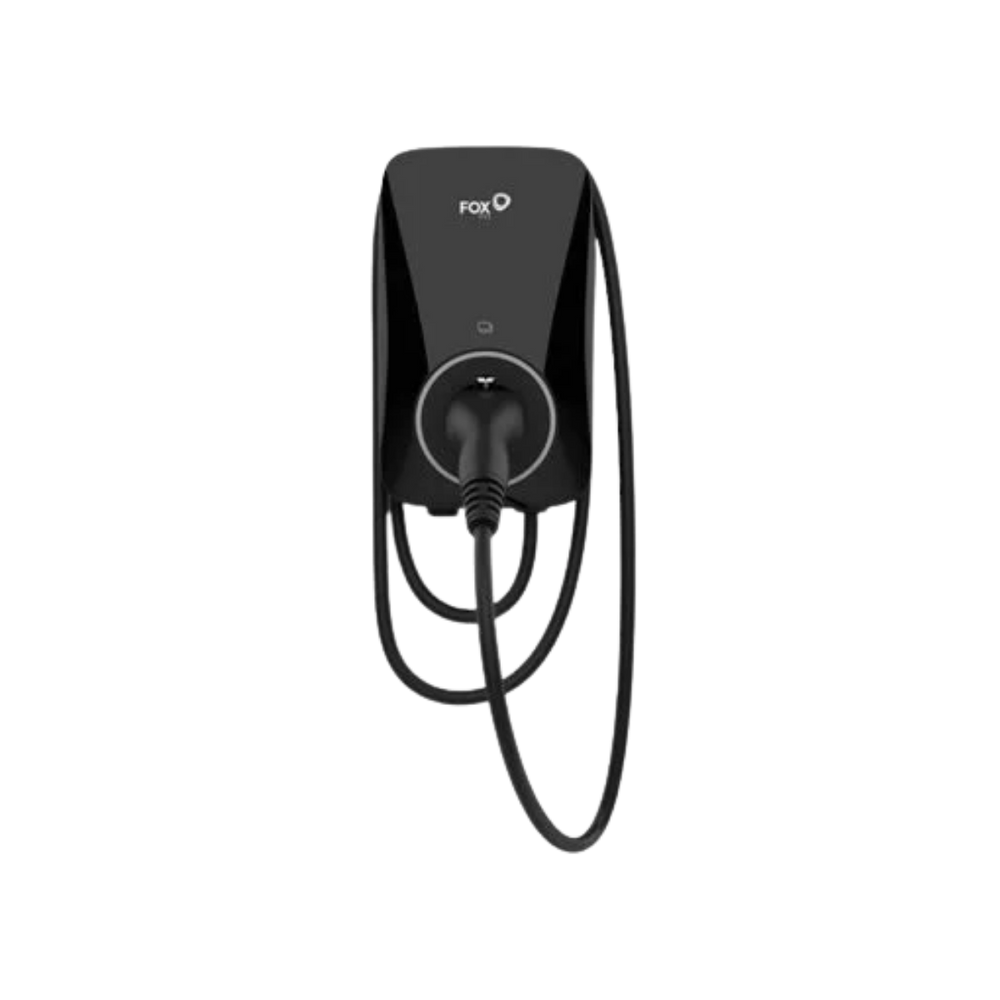

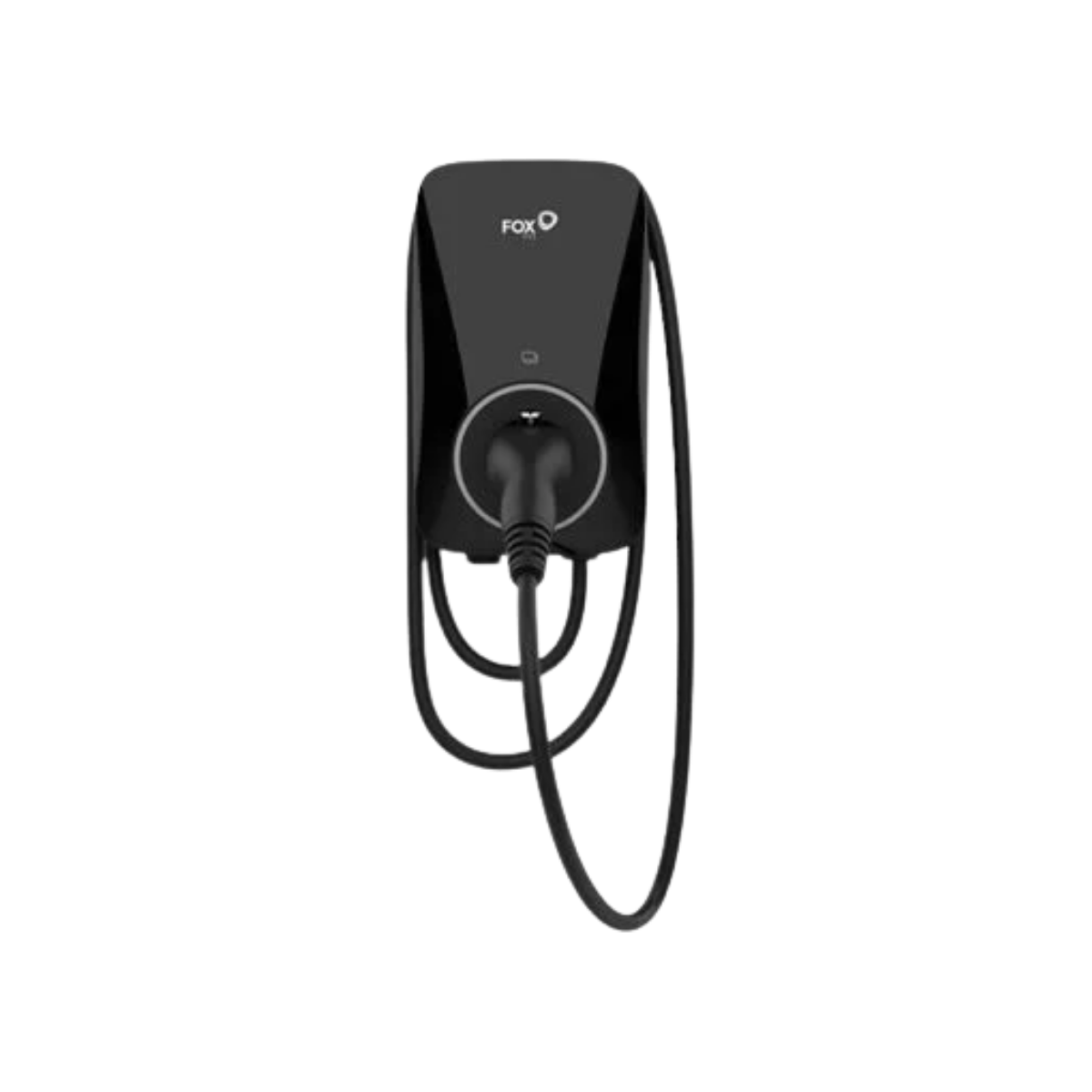

The Fox ESS A Series sets new standards in private and semi-professional charging management for electric vehicles. Available as high-performance three-phase 11 kW and 22 kW variants, optionally with a fixed integrated Type 2 charging cable or a flexible charging socket, the wallbox offers maximum flexibility for every application. Thanks to seamless PV surplus charging, future-ready V2G hardware compatibility (ISO 15118), and extensive communication interfaces, the charging station can be perfectly integrated into modern energy management systems to make charging processes as efficient and cost-effective as possible.
Highlights of the Fox ESS A Series Wallbox
- Maximum charging power: Flexibly selectable between high-efficiency three-phase 11 kW (16 A) or powerful 22 kW (32 A) for extremely reduced charging times.
- Future-proof V2G hardware: Hardware-prepared from the factory for bidirectional charging and advanced vehicle communication according to ISO 15118.
- Smart PV integration: Optimized for the direct use of surplus solar power from your own photovoltaic system for true zero-emission charging.
- Extensive connectivity: Full control via Wi-Fi (2.4 GHz), Bluetooth, Ethernet (RJ45), as well as an optional 4G module for seamless integration into app controls and backend systems via OCPP 1.6/2.0.1.
- Flexible start mode: Convenient authorization and control via Plug & Charge, a secure RFID card (Mifare ISO/IEC 14443 A), or directly via smartphone app.
Highlights of protective and system components
- Integrated residual current detection: Maximum protection standard on board due to sensitive all-current-sensitive AC 30 mA and DC 6 mA RCD residual current monitoring.
- All-in protection mechanisms: Seamlessly secured by integrated overvoltage/undervoltage protection, overcurrent protection, grounding protection, surge arresters, and reliable over-temperature protection.
- Industrial robustness: Optimally protected, salt-spray and UV-resistant design housing with IP65 certification and the extremely high impact resistance class IK08.
- Dynamic load balancing: Reliably protects the house connection from overload by intelligently and dynamically adjusting the charging current to current building consumption.
- Vandalism and tampering protection: Integrated protection functions prevent unauthorized interference and guarantee absolutely reliable continuous operation in outdoor areas.
Technical specifications: Model comparison (11 kW to 22 kW)
| Feature | A011KP1-E-B | A011KS1-E-B | A022KP1-E-B | A022KS1-E-B |
|---|---|---|---|---|
| Connection type | Type 2 cable (6 m) | Type 2 socket | Type 2 cable (6 m) | Type 2 socket |
| Max. AC power | 11 kW | 11 kW | 22 kW | 22 kW |
| Nominal output current | 16 A | 16 A | 32 A | 32 A |
| Connection scheme | 3L / N / PE (Three-phase) | |||
| Nominal input voltage | 400 V AC ± 20 % | |||
| Net weight | ≤ 6.3 kg | ≤ 3.2 kg | ≤ 6.3 kg | ≤ 3.2 kg |
| Dimensions (W × H × D) | 190 × 320 × 144 mm | 190 × 320 × 130 mm | 190 × 320 × 144 mm | 190 × 320 × 130 mm |
General technical data (Shared system platform)
| Feature | Details and system values |
|---|---|
| Mains frequency / Standby consumption | 50 / 60 Hz | Standby power consumption: ≤ 10 W |
| Power accuracy | ≤ 2 % |
| Operating environment | Temperature range: -30 °C to +50 °C | Humidity: 5 % - 95 % (non-condensing) |
| IP & IK protection class | Housing: IP65 (Socket: IP55) | Mechanical impact resistance: IK08 |
| Cooling & EMC class | Self-cooling (convection-based) | Electromagnetic compatibility: Class B |
| Certification standards | CE, CB, UKCA, RCM | Compliant with EN/IEC 61851-1:2019 & EN/IEC 61851-21-2:2021 |
Advantage for professionals: The Fox ESS A Series offers solar installers and demanding end-users a highly innovative AC charging solution that shines with its extreme robustness (IK08 impact resistance) and smart backend compatibility via OCPP. The integrated protection concept with all-current-sensitive residual current detection saves additional installation costs in the sub-distribution board, while the future-proof V2G hardware architecture secures the investment for the long term and optimally integrates the vehicle into sector coupling.
