K2 Systems  |  SKU: 53014  |  Barcode: 4251786217106

K2 Systems Dachhaken SingleHook 3S Light

Delivery time:

Jetzt registrieren für Preise
Shipping calculated at checkout.

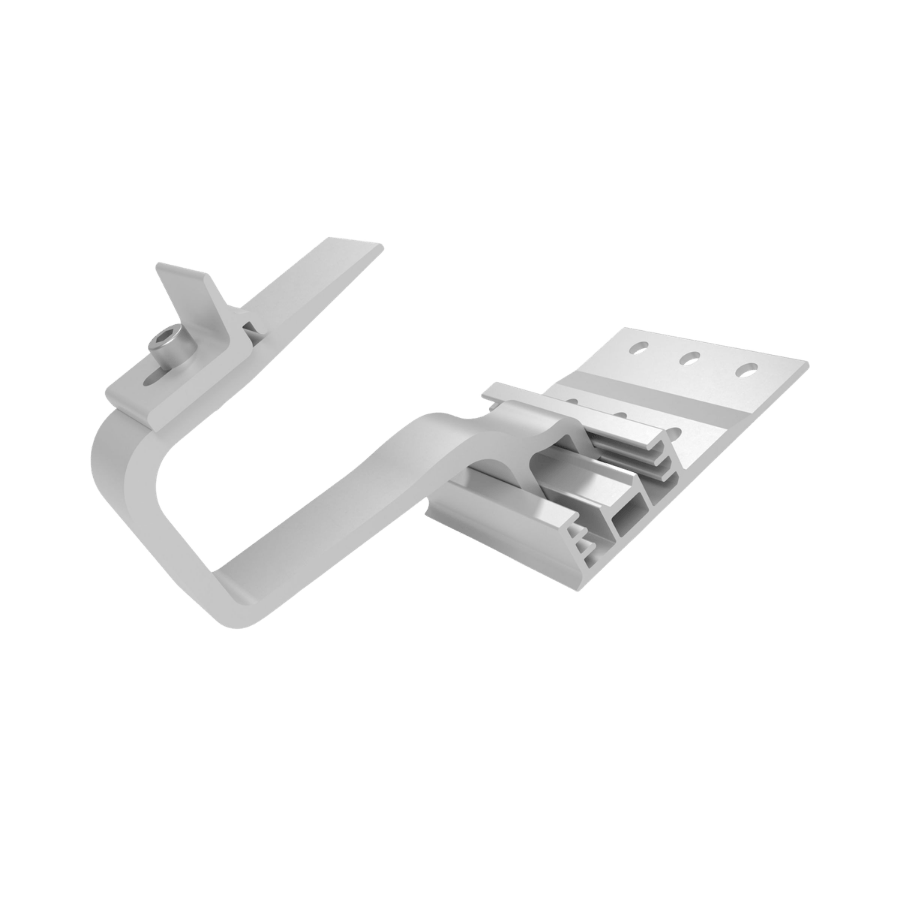

K2 Systems SingleHook 3S Light: The efficient solution for concrete roof tiles

The K2 Systems SingleHook 3S Light is a specialized roof hook for pitched roofs, characterized by its optimized design that makes installation particularly easy. With a bracket thickness of 6 mm, it is ideally suited to the requirements of concrete roof tiles. Thanks to the 3-fold height adjustment in the base plate, the hook can be flexibly adapted to different batten heights.

As is customary with the SingleHook series, the "Light" version also comes with a pre-assembled Climber 36/50 including a cylinder head screw. This enables extremely fast connection of the K2 SingleRail or CrossRail mounting rails. The combination of high-strength aluminum and stainless steel ensures reliable stability with reduced self-weight.

Highlights

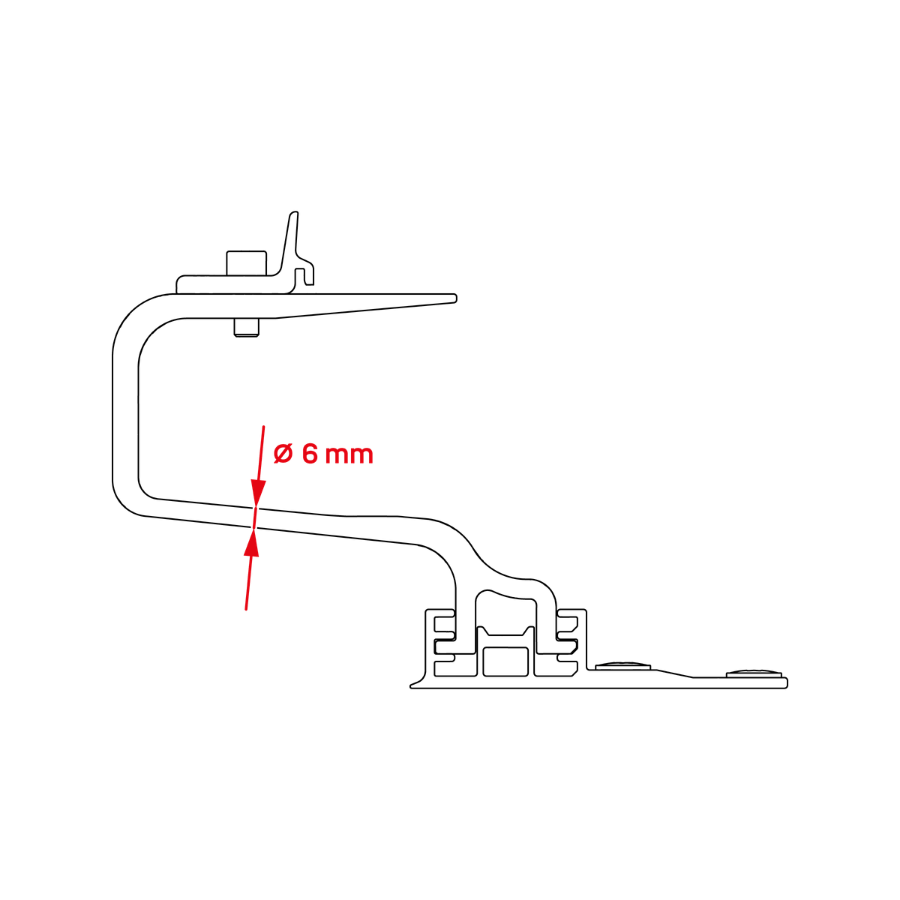

  • Optimized bracket thickness: 6 mm material thickness, perfectly suited for common concrete roof tiles.

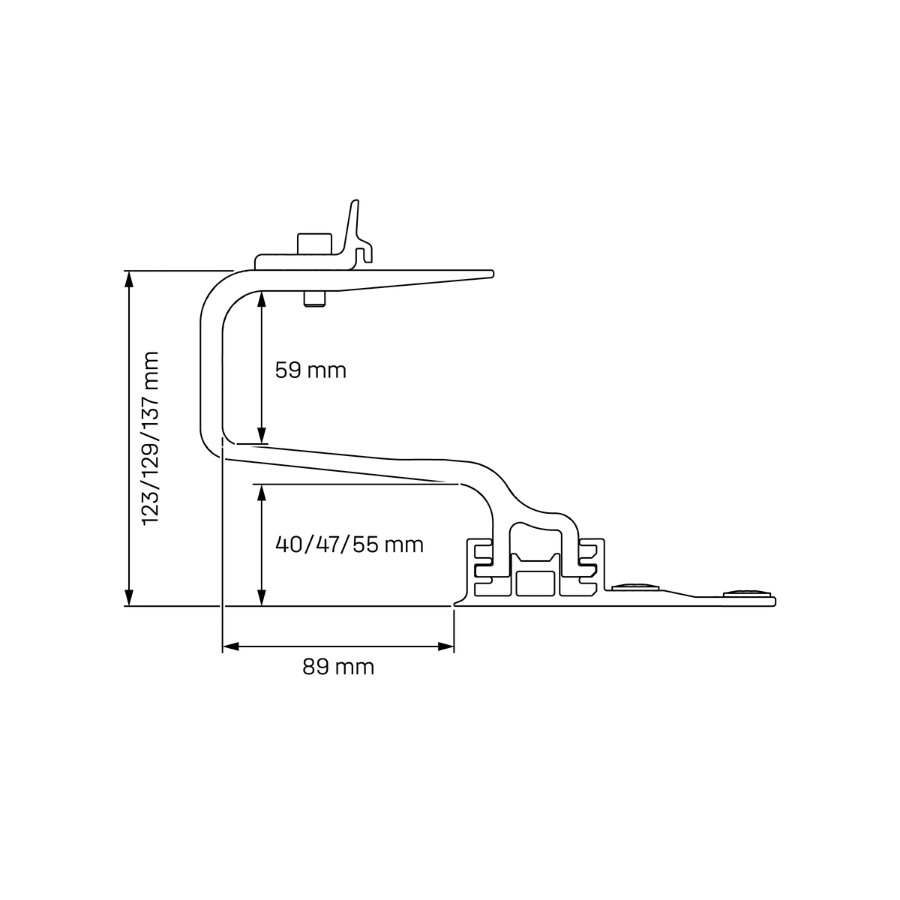

  • 3-fold adjustability: Base plate flexibly adjustable to 40, 47, or 55 mm height.
  • Ready-to-use: Pre-assembled Climber saves valuable installation time on the roof.
  • Flexible rafter mounting: Can be used from 48 mm rafter width (narrow rafters from 36 mm possible with M6 screw).
  • Durable material mix: High-quality aluminum EN AW-6063 T66 and stainless steel A2.

Complete Technical Data

Specification Details
Product Identification
Article number 2004795
GTIN 4251786217106
Component type Roof fastener (roof hook)
Adjustability & Dimensions
Base plate height steps 40 mm | 47 mm | 55 mm
Bracket thickness 6 mm
Rafter width From 48 mm (with special timber construction screw from 36 mm)
Material & System
Materials Aluminum EN AW-6063 T66, stainless steel A2
Mounting systems K2 SingleRail System
Accessories (included) Pre-assembled Climber 36/50 & cylinder head screw
Application area Pitched roof (concrete roof tiles)
Logistics & Weight
Sales quantity unit 30 pieces
Packaging levels 30 (carton) | 720 (pallet)
Weight (per piece) 0.531 kg
Customs tariff number 76109090
